ASTM A536 is the foundational specification for ductile iron castings used in pressure-containing components — including the cast fittings, couplings, restraint rings, and accessories used with ductile iron pipe — and when combined with pipe-specific standards such as AWWA C151, produces a pipeline material with excellent strength, toughness and long service life for water and sewer systems.

For engineers, specifiers and procurement managers: specify ASTM A536 for all ductile-iron cast components (fittings, restrainers, special parts) that must meet guaranteed mechanical performance rather than a narrow chemical composition. For full pipe systems pick AWWA C151 (or the local equivalent) for the pipe body, and require A536 castings for mating fittings and accessories to maintain compatible strength and ductility across the system. When those standards are respected and paired with appropriate linings/coatings, ductile iron pipelines will routinely deliver multi-decade service in potable water and wastewater applications.

What ASTM A536 covers

ASTM A536 is a mechanical-property driven specification for ductile iron castings (also called spheroidal graphite, nodular or SG iron). Unlike some metallurgy standards that prescribe exact chemical recipes, A536 establishes grades defined primarily by tensile strength, yield strength and elongation (for example: 65-45-12, 60-40-18, 80-55-06, 100-70-03, 120-90-02). The standard permits foundries flexibility in chemistry and process so long as the castings meet the listed mechanical requirements and inspection criteria. This approach is well suited for pressure-containing pipe fittings and components where mechanical performance under load is the controlling design parameter.

Metallurgy and grades relevant to pipe fittings (mechanical-property focus)

ASTM A536 groups ductile iron into grades identified by the rounded format X-Y-Z, where:

• X = minimum tensile strength (ksi)

• Y = minimum yield strength (ksi)

• Z = minimum percent elongation (%)

Common grades used in pipe fittings and accessory castings:

• 65-45-12 — good machinability, general fittings; often furnished as-cast.

• 60-40-18 — often used for higher ductility requirements, sometimes full-annealed for low temperature service.

• 80-55-06 and higher grades (100-70-03, 120-90-02) — used where higher strength or specific heat-treatment is demanded (quench & temper, normalize & temper, or isothermal treatments).

Why grades matter for pipe systems: fittings see stress concentrations, bolting loads, and restraint forces. A fitting cast to an appropriate A536 grade will better tolerate handling loads, installation-induced stress, and transient pressure events than an unspecified gray iron part.

How ASTM A536 fits with pipe standards (AWWA, ISO, national codes)

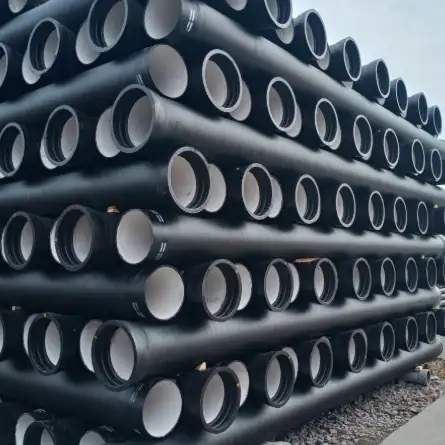

ASTM A536 covers castings; ductile-iron pipe itself is typically specified to AWWA C151 / ANSI A21.51 (U.S. practice) or corresponding national/ISO standards in other regions. Pipe bodies, joint designs and factory-applied linings/coatings are governed by those pipe standards, while fittings, mechanical joints, restraint rings and accessory cast parts are normally required to conform to A536. In other words, the pipe standard defines the pipe, the A536 standard defines the cast fitting materials.

Practical spec practice:

• Call out AWWA C151 for the pipe body (if specifying AWWA practice).

• Require ASTM A536 for all ductile-iron fittings and cast accessory components.

This pairing is widely used in utility contracts and municipal specifications.

Manufacture, quality control, and typical testing required by A536

A536 emphasizes mechanical tests and microstructure observations. Typical factory controls and test evidence include:

• Tensile test certificates showing tensile strength, yield and elongation per specified grade.

• Hardness checks and visual/microscopic verification of nodularity and graphite morphology (ASTM A247 used for graphite evaluation).

• Impact testing or heat-treatment records where heat-treat grades are specified (e.g., 100-70-03 requiring quench & temper or normalize & temper).

• Dimensional and hydrostatic tests for pressure parts when required by the purchasing specification (often referenced to the pipe or project spec).

Best practice for owners: require mill test reports (MTRs) linked to purchase order lot numbers, witness testing for critical components, and retain samples for traceability. DIPRA and industry handbooks explain typical factory QC sequences for ductile-iron pipe systems.

Corrosion protection, linings and coatings for ductile-iron pipe systems

Ductile iron is ferrous and requires protection for long service lives in aggressive environments. Common protective systems used on pipe + fittings include:

• Cement-mortar internal lining — the benchmark for potable water; prevents tuberculation and supports hydraulic performance.

• Loose polyethylene sleeving (LPS) — a simple, field-proven external protection used in many countries to reduce soil corrosivity effects.

• Zinc + finishing layer (bonded) — common in Europe for higher external protection levels.

• Polyurethane internal linings — alternative to cement mortar for specific chemical or industrial services but requires careful handling to avoid damage.

When specifying A536 castings, require compatibility between the coating/linings applied to the pipe body and the fittings (cement lining thickness, coating systems, and joint protection). Many municipal specs explicitly require fittings to be cement-mortar lined and exterior zinc coated per the AWWA/ASTM/country standard.

Design, jointing and installation interactions where A536 matters

Although A536 is a metallurgical/ mechanical specification, it directly influences field performance in several ways:

• Mechanical joint seals and restraints: restraint components and wedges are cast parts; their ductility and toughness (A536 grade choice) affect the ability to absorb installation misalignment and transient loads.

• Bolt pattern and flange faces: flanged fittings and their bolt bosses are stress-concentration locations; toughness and elongation help prevent brittle cracking during torqueing.

• Trench conditions and handling: castings specified to higher-ductility grades will be more forgiving when exposed to shock during transport or burial operations.

Specifying engineers should combine material call-outs (A536 grade), joint type (AWWA C111, C110, etc.), and installation notes (polyethylene sleeving, backfill requirements) to fully control system performance.

Performance, longevity and failure modes (what engineers worry about)

Ductile-iron pipe systems that comply with the relevant manufacturing and coating standards often enjoy service lives of 75–110 years in benign soils when properly installed and maintained. Reported failure modes include:

• Graphitization (leaching of iron matrix leading to loss of section strength in highly aggressive soils).

• Localized pitting and corrosion (can be mitigated by correct linings and external coatings).

• Mechanical damage during handling/installation — prevented by specifying tougher grades and improved installation controls.

DIPRA and AWWA technical literature provide case histories and mitigation strategies; the key is a systems approach: material selection (A536 grade), lining/coating choice, joint selection and prudent trenching/backfill practices.

Supply chain: Chinese manufacturers, MWAlloys offering, procurement notes

If you are sourcing ductile-iron fittings and cast components from global suppliers, China remains a major manufacturing hub with many foundries able to deliver A536-compliant castings. Important procurement controls:

• Require Mill Test Reports and traceable batch IDs linked to casting heat numbers.

• Ask for witness inspection or third-party QA when contract value or criticality is high.

About MWAlloys (seller note): MWAlloys is a China-based ductile iron foundry and fabricator specializing in pipe fittings, restraint rings, flange castings and accessory components for water and wastewater networks. We supply A536 grade castings with 100% factory pricing, maintain stock for fast turnarounds on common sizes, and can provide MTRs and production photos on request. For projects that require rapid procurement and consolidated shipping from China, MWAlloys can offer competitive short-lead supply options and experienced export documentation support.

Practical buyer tips when working with Chinese suppliers:

• Confirm compliance documentation (ASTM A536 certificates, AWWA C111/C153 compliance where relevant).

• Verify sample test reports and request non-destructive test (NDT) results if specified.

• Use independent laboratory testing for initial lots to confirm mechanical properties and microstructure.

Comparative specification table - common A536 grades and typical mechanical properties

Note: ASTM A536 sets mechanical requirements (tensile, yield, elongation) but does not strictly enforce a single chemistry. The table below summarizes typical or minimum mechanical property targets associated with common A536 grades; buyers should require MTRs from the foundry for verification. Sources: foundry technical datasheets and industry reference guides.

1. Q: Is ASTM A536 the same as the pipe standard for ductile iron pipe?
   A: No. A536 governs ductile-iron castings (fittings and components). The pipe body is normally specified to AWWA C151 (ANSI/AWWA C151/A21.51) or the appropriate national/ISO standard; both should be used together in project specs.

2. Q: Which A536 grade is most common for fittings?
   A: 65-45-12 is one of the most commonly specified grades for general fittings due to its balance of strength, ductility and machinability. However project requirements may call for 60-40-18 (higher ductility) or higher strength grades.

3. Q: Does A536 specify chemistry?
   A: No — A536 is performance-driven. Foundries can use different chemistries and processes but must meet the mechanical property and microstructure requirements in the standard.

4. Q: Are A536 castings suitable for low-temperature service?
   A: Some grades (e.g., 60-40-18 in a ferritizing anneal) are intended to offer improved low-temperature toughness, but cold service limits and specific heat-treatment requirements should be verified per the project spec.

5. Q: What linings/coatings should be required for a potable water pipeline?
   A: Cement-mortar internal lining with appropriate exterior corrosion protection (LPS or zinc + finish) is industry standard for potable water; the AWWA C151 standard describes lining requirements for pipe bodies and many municipal specs apply the same approach to fittings.

6. Q: How long can a ductile iron pipeline last if A536 and AWWA standards are followed?
   A: Field studies and industry analyses estimate service lives commonly in the 75–110 year range under typical soil and installation conditions when correct protections are used. Actual life depends on soil chemistry, cathodic protection, lining/coating integrity and maintenance.

7. Q: What documentation should a buyer demand from a foundry?
   A: Mill Test Reports (MTRs), heat numbers, microstructure photos or reports, hardness results if required, witness test records (if applicable), and conformity statements to ASTM A536 and any piping standards referenced in the purchase order.

8. Q: Can fittings be cement-lined and also zinc-coated?
   A: Yes — many project specs require internal cement lining and an exterior zinc coating (with or without a finishing topcoat) for fittings; confirm compatibility and thickness requirements with the project spec.

9. Q: Do Chinese foundries produce A536 castings to the same standard as Western suppliers?
   A: Many Chinese foundries manufacture to ASTM A536 and have exported fittings worldwide; however, buyers should validate documentation, perform audits or third-party testing for critical projects and ensure supply chain traceability. MWAlloys offers factory pricing and fast stock delivery while providing MTRs and inspection photos on request.

10. Q: What is the simplest way to specify A536 materials in a purchase order?
    A: Include: (1) ASTM A536 grade required (e.g., 65-45-12), (2) required heat treatment (if any), (3) acceptance tests (tensile, elongation, microstructure per ASTM A247), (4) required linings/coatings, (5) MTRs per casting heat number, and (6) third-party inspection/witness testing if critical.

Practical procurement checklist

• Specify A536 grade and link to the applicable pipe standard (AWWA C151 for pipe, AWWA C110/C153 for fittings).

• Require MTR and microstructure evidence for each lot.

• Define coating and lining expectations (cement mortar thickness, external zinc + topcoat or LPS).

• Set inspection and acceptance criteria (visual, dimensional, pressure/hydrostatic if applicable).

• For Chinese suppliers: ask for sample release tests, third-party lab reports, and photos of casting, lining, and packaging.

Closing technical summary

ASTM A536 remains the practical, manufacturer-friendly specification for ductile-iron castings: it lets foundries optimize chemistry and process while guaranteeing the mechanical performance engineers require for pipe fittings and accessories. For pipeline systems, pairing A536 castings with pipe standards such as AWWA C151, and specifying robust linings and external corrosion protection, produces a durable, repairable network with proven long-term performance. For rapid, factory-direct sourcing of A536 castings from China, MWAlloys can supply documented castings at 100% factory price with stock availability for common sizes — technical documentation and MTRs available on request.
