Nickel-Titanium Alloy: Properties, Prices, Process

Nickel–titanium (NiTi, commonly “Nitinol”) is a near-equiatomic intermetallic alloy whose controlled phase transformations produce two extraordinary behaviors — a recoverable, heat-activated shape memory and a temperature-dependent, very large elastic strain called superelasticity. These properties, combined with excellent fatigue performance (when properly processed), corrosion resistance after surface finishing, and proven biocompatibility for many medical uses, make NiTi the material of choice where reversible, repeatable motion or very high recoverable strain is required — from stents and orthodontic wires to actuators, couplings and adaptive aerospace components.

1. What is nickel-titanium (NiTi / Nitinol)?

Nickel-titanium alloys used in engineering and medical applications are nearly equiatomic mixtures of nickel and titanium (nominally ~55 at.% Ni / 45 at.% Ti in many commercial grades). The alloy was identified in the late 1950s at the U.S. Naval Ordnance Laboratory — the trade name “Nitinol” is from Nickel Titanium and Naval Ordnance Laboratory. Commercialization required decades because processing (melting, thermomechanical work and heat treatment) is unusually sensitive and challenging.

NiTi is not a single “grade” in the same way as stainless steels; rather, small shifts in composition and heat treatment produce significant changes in transformation temperatures and mechanical response. Typical commercial designations reference transformation behavior (e.g., “superelastic” NiTi with Af below body temperature, “shape-memory” NiTi with Af above body temperature) and product form (wire, tube, sheet).

2. Two hallmark behaviors: shape memory and superelasticity

NiTi shows two closely related but distinct phenomena that define its engineering uses:

• Shape memory effect (SME): If NiTi is deformed in the martensitic state (below its transformation region) and then heated above its austenite finish temperature (Af), the original shape is recovered. This returns the part to a trained geometry and can produce large recovered strains vs typical metals.

• Superelasticity (pseudoelasticity): If NiTi is at a temperature above Af (austenitic state) it can undergo a stress-induced phase transformation to martensite while under load and then spontaneously revert to austenite after unloading. This gives recoverable strains of several percent (commonly 6–8% in practical wires/tubes, sometimes more in optimized alloys) — much larger than conventional elastic metals.

Which behavior you get depends on the alloy’s transformation temperatures relative to the working temperature.

3. Microstructure and phase transformations

NiTi’s mechanics stem from a reversible, diffusionless (martensitic) phase transformation between:

• Austenite (high-temperature, B2 cubic or B2-like structure) — stiff and relatively strong.

• Martensite (low-temperature, monoclinic B19′) — softer, easily deformed by reorientation of martensitic variants.

• R-phase (a trigonal intermediate) — may appear in some compositions/processing routes and complicate the thermal/ mechanical response (small strain, small hysteresis).

Transformation temperatures are usually given by four characteristic points determined by thermal analysis (DSC) or mechanical tests: Ms/Mf (martensite start/finish on cooling) and As/Af (austenite start/finish on heating). Small composition changes (hundreds of ppm) or cold work/aging can shift these temperatures substantially, which is why tight process control is critical. ASTM test methods exist specifically to quantify these temperatures.

Design note: Engineers specify Af (austenite finish) for devices whose functional mode depends on whether the material is superelastic at operating temperature (Af below use temperature) or displays shape memory (Af above use temperature).

4. Mechanical properties and fatigue behavior

NiTi’s mechanical behavior is strongly state-dependent:

• Austenitic (superelastic) modulus: effective modulus is lower in the plateau region but typical elastic moduli reported in literature vary with temperature and processing (often quoted 30–75 GPa depending on state).

• Martensitic state: lower modulus and greater ductility.

• Recoverable strain: up to ~8% in many commercial wires/tubes without permanent set under proper cycling conditions; this contrasts with ~0.2% for steel.

• Fatigue: NiTi exhibits superior strain-controlled fatigue life compared to many metals at comparable strains, but fatigue remains the chief failure mode for demanding cyclic applications. Careful surface finishing (electropolish, passivation), precise thermomechanical training, and avoiding stress concentrations are the primary methods to achieve long life.

Fatigue performance is sensitive to microstructural defects and surface damage. For implants and other safety-critical devices, designers must demonstrate durability through accelerated cyclic testing and (for medical devices) follow FDA and recognized consensus standard guidance.

5. Processing, thermomechanical training and heat treatments

NiTi’s as-manufactured properties are defined by a chain of thermal and mechanical operations:

• Melting / vacuum induction melting (VIM) and vacuum arc remelting (VAR) are commonly used to achieve chemical cleanliness and control trace elements.

• Hot working and wire/tube drawing impart deformation and predefine microstructure; these steps are followed by anneals.

• Aging and solution treatments tune transformation temperatures by causing precipitation or relieving internal stresses. Small thermal aging at low temperatures can shift Af measurably.

• Thermomechanical training — controlled deformation and heat cycling to “train” a shape-memory geometry (e.g., a stent geometry or a programmed curl) — is routine for shape-set parts.

Processing steps must be tightly controlled because NiTi is sensitive to oxygen and contamination; vacuum melting and precise atmosphere control are routine for medical-grade productions.

6. Surface chemistry, corrosion resistance and biocompatibility

Untreated NiTi forms a stable titanium-oxide (TiO₂) surface film which is protective and contributes to good corrosion resistance. A well-formed TiO₂ layer also limits nickel ion release — an important point where NiTi is used in vivo. Electropolishing and passivation treatments reduce surface roughness and remove surface nickel-rich oxides, improving both corrosion resistance and fatigue life.

Regulatory and biocompatibility evaluations (ionic release, cytotoxicity, sensitization) are essential for medical devices. The FDA has published specific technical considerations for NiTi devices that highlight testing for transformation temperature, mechanical behavior, nickel release, and the effects of finishing/processing on performance.

7. Forms, manufacturing routes and joining/machining notes

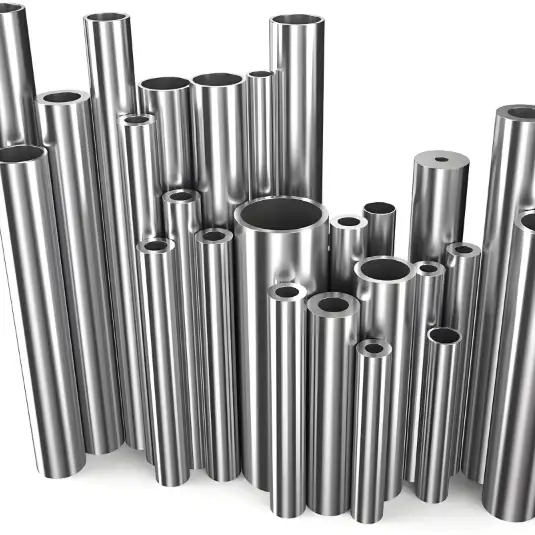

Commercial NiTi products come as wire, tube, foil, sheet, bar and laser-cut or photo-etched components. Common manufacturing challenges:

• Machining: NiTi work-hardens and is difficult to machine conventionally. Laser cutting, EDM, chemical etching and careful grinding are typical.

• Welding/joining: Laser welding is commonly used for NiTi to NiTi, and special considerations apply to heat-affected zones (HAZ) that alter transformation temperatures locally. Brazing and mechanical joining are alternatives.

• Shape-setting: For components that must “remember” a shape, shape-setting is achieved by constraining a part to the final geometry and heat treating above the transformation temperature for a prescribed time.

Because thermomechanical history matters so much, manufacturers treat NiTi processing more like a recipe that must be repeated precisely to produce consistent Af, plateau stress, fatigue life and corrosion properties.

8. Standards and regulatory landscape

Several recognized standards and guidance documents exist for NiTi, particularly for medical applications:

• ASTM F2063 — Standard Specification for Wrought Nickel-Titanium Shape Memory Alloys for Medical Devices and Surgical Implants (defines composition range, processing cleanliness, mechanical tests, etc.).

• ASTM F2004 — Standard Test Method for Transformation Temperature of Nickel-Titanium Alloys by Thermal Analysis (DSC methods).

• FDA guidance — Non-Clinical Assessment of Medical Devices Containing Nitinol outlines FDA expectations for performance characterization, transformation temperature measurement, fatigue testing and nickel release assessments.

For medical devices, ASTM standards are often recognized by regulatory agencies; manufacturers typically refer to ASTM methods for test designs and to FDA guidance for device-specific concerns. Even for non-medical industrial applications, following these methods provides consistency and traceability.

9. Applications — where NiTi provides unique value

Medical devices (largest regulated market): stents, guidewires, orthodontic archwires, occlusion devices, endovascular filters, vena cava filters, and superelastic catheter components. Biocompatibility, superelasticity, and the ability to compress for minimally invasive deployment are decisive advantages.

Industrial actuators & couplings: compact, silent actuators based on shape memory can replace motors in space-constrained systems; NiTi can produce linear or rotary motion with good power density.

Aerospace: adaptive or morphing components (chevrons, actuated seals) use NiTi for lightweight actuation with few moving parts; NASA and OEM research has demonstrated flight-worthy concepts.

Robotics & haptics: NiTi wire actuators are attractive where quiet, low-mass actuation is needed; challenges include control of hysteresis and heat management.

Consumer & specialty: eyewear frames (flex), novelty items, temperature-responsive devices, and niche sporting goods.

10. Design and selection guidance

A few practical rules when designing with NiTi:

1. Specify transformation temperatures (As/Af, Ms/Mf) explicitly for the intended operating range — measurement method (DSC vs bend/recovery) must be agreed between buyer and supplier.

2. Surface finish matters: electropolish/passivate to reduce fatigue initiation sites and nickel release.

3. Account for hysteresis and nonlinearity: The stress-strain diagram has a plateau controlled by transformation; design tolerances must allow for plateau stress variability.

4. Avoid sharp corners and stress concentrators; use fillets to prolong fatigue life.

5. Request full thermomechanical certificates: transformation curve, tensile/force-deflection data, surface treatment details and process history.

When in doubt, prototype parts and perform representative cyclic testing under realistic environmental and loading conditions. For medical devices, follow FDA/consensus standard test plans early.

11. Nickel–Titanium Alloy (Nitinol) prices 2025

Region	Product/Grade	Price Range (USD/kg)	Notes
China	Industrial / SE / SM grades	140 – 210	Best value for high-volume orders
USA	ASTM F2063 (medical-grade) / SE	220 – 300	Premium pricing for medical-certified material
Germany	SM / SE (high-precision grade)	200 – 280	High-precision and R&D quality
India	SM / Industrial grade	160 – 220	Cost-effective for engineering use
General (sheet form)	NiTi alloy sheet	50 – 150	Varies significantly with grade/thickness

12. Quick reference — typical properties table

Table 1 — Selected typical ranges for commercial near-equiatomic NiTi (values are illustrative; specify exact test methods and state for design use)

• Fatigue cracks initiating at surface defects or machining marks: mitigate with electropolish and surface inspection (optical/SEM) and design fillets.

• Local shift in transformation temperature in HAZ or cold-worked zones: control welding/laser parameters, or specify post-weld anneal and recharacterize Af.

• Nickel ion release and sensitization risk: ensure passivation/electropolishing, and perform chemical release testing per biocompatibility protocols.

14. FAQs

Q1. Is NiTi the same as Nitinol?
Yes. Nitinol is the trade name commonly used for commercial nickel-titanium shape-memory alloys; NiTi is the chemical shorthand.

Q2. Which is better for stents: superelastic NiTi or shape-memory NiTi?
Superelastic NiTi (Af below body temperature) is typically used for self-expanding stents because it recovers shape instantly when deployed. Shape-memory grades (Af above body temperature) are used where thermal actuation or temperature-triggered expansion is required.

Q3. How is Af specified and measured?
Af (austenite finish) is measured by DSC (ASTM F2004) or by bend/recovery tests (ASTM F2082). Method must be specified as results vary by technique.

Q4. Will NiTi corrode in the body?
Properly processed NiTi forms a protective TiO₂ layer and shows good in-vivo corrosion resistance. Nickel ion release is low when surfaces are electropolished/passivated; nevertheless, biocompatibility testing is mandatory for implants.

Q5. Can NiTi be welded?
Yes — laser welding and other localized joining methods are used, but the HAZ must be tested because welding changes local transformation behavior and mechanical properties.

Q6. Does NiTi contain nickel allergy risk?
All NiTi contains nickel, but properly finished NiTi often releases less nickel than some stainless steels; however, allergies are patient-specific and regulatory testing addresses sensitization risk.

Q7. Can NiTi be machined into complex shapes?
Conventional machining is difficult due to work hardening; laser cutting, EDM, chemical etching and specialized grinding are the preferred methods.

Q8. How do I ensure consistent performance from a NiTi supplier?
Request full material certificates: composition, DSC transformation curve, mechanical testing in the intended state, surface finish details, and process history (melting route, heat treatments). For medical parts, provide supplier audit and product verification testing.

15. Emerging trends and research directions

• Alloy variants and doping: small additions (Cu, Pd, Pt) alter hysteresis and fatigue; medical and high-temperature SMA research explores alloying to tailor response.

• Elastocaloric cooling: NiTi shows promise in solid-state cooling cycles leveraging stress-induced transformations (research prototypes only).

• Additive manufacturing (AM): efforts continue to produce reliable AM NiTi parts, but controlling composition, porosity and transformation temperatures in AM is still an active research area.

16. Practical checklist for engineers

1. Define Af / use temperature and required recoverable strain.

2. Specify product form (wire/tube/foil) and surface finish.

3. Require ASTM F2063 compliance for medical uses and define test methods (ASTM F2004 for Af).

4. Request fatigue test protocols and representative device cycling.

5. Specify acceptance limits for nickel release and corrosion testing per regulatory guidance.

17. Closing remarks

Nickel-titanium alloys have transformed device thinking where reversible, reliable, and compact motion or large recoverable strains are needed. Their advantages come with demands: precise chemistry control, careful thermomechanical processing, surface finishing, and thorough mechanical/biocompatibility characterization. When these are handled correctly, NiTi enables designs that would be impractical with conventional engineering metals.
