Is Carbon Fiber Stronger Than Steel?

Is carbon fiber stronger than steel? Yes! carbon fiber can be “stronger” than steel in the ways engineers usually mean: it has much higher tensile strength per unit mass (specific strength) and can reach higher absolute tensile strengths for the filaments themselves; however, carbon fiber composites behave very differently from steel in stiffness, compressive strength, toughness, ductility, manufacturability, cost, and damage tolerance. The correct design choice depends on whether you need low weight, high tension capacity, crash energy absorption, reparability, or low-cost bulk structure.

What “strength” really means

People often say “stronger” casually, but materials engineers split the idea into measurable properties:

• Ultimate tensile strength (UTS) — maximum tensile (pulling) stress before fracture.

• Yield strength — stress at which material begins to plastically deform (important for metals).

• Young’s modulus (stiffness) — how much a material deforms elastically per unit stress.

• Specific strength (strength-to-weight ratio) — UTS divided by density; critical for weight-sensitive design.

When comparing carbon fiber and steel you must be explicit: do you mean UTS, stiffness, specific strength, fatigue life, crush energy, or manufacturability? The single word “stronger” is not sufficient for engineering decisions.

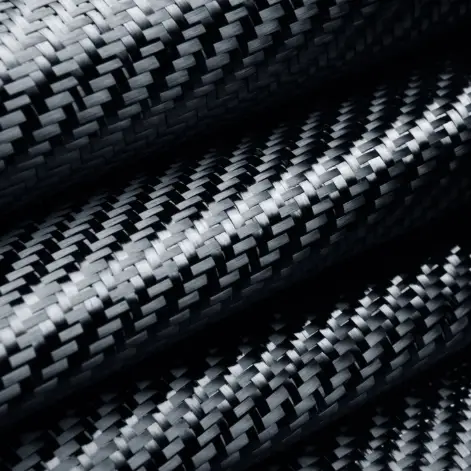

What is carbon fiber

Carbon fiber refers to slender filaments (>90% carbon) produced by controlled oxidation and high-temperature carbonization of polymeric precursors (usually PAN — polyacrylonitrile). Filaments are bundled into tows, woven into fabrics, then combined with a resin matrix (commonly epoxy) to make carbon-fiber-reinforced polymer (CFRP) laminates. Different fiber grades (standard-modulus, intermediate-modulus, high-modulus, ultra-high-modulus) trade tensile strength vs modulus and cost. The filaments themselves have extremely high tensile strength and low density (~1.7–1.9 g/cm³).

Important points:

• Carbon fiber fibers (single filaments) can show tensile strengths in the multiple-GPa range (typical commercial fibers ~2.5–4 GPa; some high-end fibers reach higher values).

• Composite parts (fiber + matrix) translate fiber strength into structural performance, but performance depends heavily on fiber fraction, fiber orientation, resin system, and manufacturing quality.

What is Steel

Steel is an iron-carbon alloy with many grades and heat treatments producing a wide span of mechanical behavior. Ductile structural steels (S235, S355, A36) typically have UTS in the 350–600 MPa range. High-strength low-alloy steels and specialty steels (e.g., AHSS automotive grades, tool steels, maraging steels) can have UTS above 800–1500 MPa depending on alloy and processing. Steel density is ~7.85–7.9 g/cm³. Steel is isotropic in polycrystalline form, ductile, and typically shows plastic deformation and energy absorption before fracture.

Key differences summary:

• Steel is much denser and usually more ductile and damage tolerant.

• Steel’s modulus is ~200 GPa (stiff), while carbon-epoxy laminates’ effective modulus depends on fiber orientation (axial fiber modulus ~230–400+ GPa for fibers; composite laminate modulus along fiber direction can be tuned).

Property comparison

Below is a compact, practical table comparing typical ranges for widely referenced baseline materials. Values vary with grade and process; the table uses representative published data sources (citations follow).

* Filament numbers from Toray/Hexcel technical data; composite laminate numbers vary with fiber volume fraction (Vf), resin, and test standard. ** Laminate UTS depends on ASTM/ISO test methods (e.g., ASTM D3039).

Interpretation (short): a carbon fiber filament can have far higher absolute tensile strength than many steels, and carbon-fiber composites deliver exceptional specific strength — they win where low mass and high tensile performance are paramount. But the composite’s anisotropy, low compressive/through-thickness toughness relative to metals, and damage sensitivity make the tradeoffs complex.

Why carbon fiber can be “stronger” (specific strength & design)

Two reasons carbon fiber often comes out ahead in engineering claims:

1. High fiber tensile strength at very low density. A typical PAN-based fiber such as Toray’s T300 has filament tensile strength ~3,500 MPa with density ~1.76 g/cm³ — a specific strength far higher than steel. When fibers are used in a high-quality composite with a high fiber volume fraction and the load is aligned with fibers, the laminate inherits a high strength-to-weight ratio.

2. Tailorable stiffness and strength by layup. Engineers orient fibers where loads occur: unidirectional plies give excellent axial strength; quasi-isotropic layups give balanced properties. This “designer material” approach produces parts that outperform metals on an application-by-application basis.

But: fiber strength does not automatically equal part strength. Matrix properties, fiber–matrix interface, voids, manufacturing defects, and out-of-plane loading reduce practical strength. Standards like ASTM D3039 define how to measure tensile properties of polymer matrix composites so designers can compare apples-to-apples.

Limitations of carbon fiber compared with steel

Don’t assume carbon fiber is a universal replacement for steel. Important limitations:

• Brittleness and low elongation. Carbon fibers and CFRP laminates typically fail with low strain to failure (<< steel), meaning little plastic deformation before break. That affects crashworthiness and gives less warning before failure.

• Compression and impact sensitivity. Carbon-epoxy laminates can be strong in tension along fibers but weaker in compression or under transverse impact; delamination or matrix cracking can silently reduce residual strength.

• Anisotropy. Carbon composites are directional. A part optimized for axial tension may be weak in off-axis loading unless carefully designed. Steel is largely isotropic.

• Damage detection and repair. Internal delaminations are harder to detect and often require full part replacement; steel dents can often be repaired or leave load paths.

• Cost and supply variability. Carbon fiber and high-quality composite processing are more expensive than steel for many applications (though prices have fallen).

When carbon fiber is the better choice — practical application examples

Choose carbon fiber when:

• Weight savings are mission-critical (aerospace primary structures, high-performance racing, cycling frames).

• High tensile stiffness and fatigue performance in a dominated axis are needed (helicopter rotor spars, racing driveshafts).

• Corrosion resistance and thermal stability for limited mass are required.

• A premium product can justify higher material and manufacturing cost.

Real examples: Airbus and Boeing use CFRP in wing and fuselage sections for weight savings; high-end sports equipment, motorsport monocoques, and some EV structural subframes use CFRP where the performance-to-weight tradeoff justifies cost.

When steel is the better (or necessary) choice

Choose steel when:

• High toughness, predictable ductile failure and crash energy absorption are required (building columns, crash beams, armor).

• Low cost per unit volume and simple manufacturing/repair are priorities (infrastructure, mass market auto bodies, construction).

• Joining complexity, recyclability, and dimensional stability are important (welding, bolting, on-site fabrication).

• The load case includes complex multi-directional loads, impact, or abrasion.

Steel’s low unit cost, ease of forming and welding, and well-established supply chain make it unbeatable for most heavy structural applications and general fabrication.

Manufacturing, joining and repair considerations

• Carbon fiber parts require molds, curing cycles (autoclave or out-of-autoclave), and quality control for voids and fiber alignment. Joining typically uses adhesives or mechanically fasteners with engineered inserts; welding is not applicable. Repair usually involves patching and re-cure or replacing the part. Standards like ASTM D3039 and D695 guide laboratory characterization.

• Steel parts are made by rolling, forging, stamping and welded/bolted assembly. Welding and machining are routine; field repair is commonly feasible.

For manufacturers and buyers this means different supply-chain models: composite parts often have longer lead times, stricter QA, and higher per-part cost for low volumes — but can be cheaper at scale for high value, lightweight designs.

Cost, supply chain and environmental considerations

• Cost: Historically carbon fiber was many times more expensive than steel; advances have reduced prices but CFRP remains a premium material for many uses. A full-vehicle application often mixes steels and composites to balance cost and performance.

• Supply chain: Carbon fiber markets are concentrated (Toray, Hexcel, Teijin, SGL, etc.); resin availability, curing equipment, and skilled labor also matter.

• Recycling: Steel is highly recyclable at low cost. CFRP recycling is improving (pyrolysis, solvolysis) but is still more complex and energy-intensive. The environmental impact of carbon fiber depends on system boundaries and lifecycle assumptions.

Standards and testing — how “stronger” is validated

Engineers rely on standardized tests and handbooks to quantify material behavior and validate designs:

• ASTM D3039 — standard for tensile testing of polymer matrix composite laminates (used to determine laminate UTS, modulus, strain).

• ASTM D695 — compressive properties of rigid plastics and composites (important because compression performance differs from tension).

• ASM Handbooks & materials databases — authoritative compilations covering composites and metallics for design reference.

Designers must test the actual laminate architecture (fiber type, volume fraction, curing cycle, ply orientations) — not assume filament numbers map directly to finished-part performance.

Practical selection checklist — how to choose between carbon fiber and steel

Ask these questions:

1. What is the dominant loading direction(s)? (If uniaxial tension, CFRP is promising.)

2. Is mass critical? (If yes, evaluate specific strength and stiffness.)

3. Is ductility/energy absorption critical? (If yes, steel often wins.)

4. Does the part need to be welded or field-repaired? (If yes, steel.)

5. What are allowable manufacturing costs and lead times?

6. What environmental or end-of-life constraints apply?

If you need vendor help for composite laminates, validated test coupons (ASTM D3039), and production readiness, work with suppliers experienced in quality composite processing and structural testing.

About MWalloys — how we help (brief company profile & supply notes)

As a materials and components supplier, MWalloys offers engineered carbon fiber materials and metal components to global buyers. For customers exploring CFRP vs steel tradeoffs:

• We supply high-grade carbon fiber fabrics and prepregs from qualified Chinese production lines and global partners, plus metal fabrication (carbon steel, alloy steel) when a metal solution is better.

• We can provide material certificates, test coupon manufacture, and ASTM-standard tensile and compressive test reports to support design validation.

• Factory direct pricing (100% factory price) is available for many stocked items; for stocked products we prioritize fast dispatch and can support small batch prototype runs.

• Lead times vary by product: stocked metal components ship within days; custom composite tooling and cured parts require longer cycle times (we recommend planning for tooling and cure).

Contact MWalloys for specification help, quotation, or for ASTM-compliant test data to support procurement and engineering decisions.

Short case comparisons

• Bicycle frames: High-end carbon frames offer superior stiffness-to-weight and tailored ride characteristics — carbon is commonly used. Steel remains popular for lower-cost, durable frames.

• Automotive crash structures: Steel (or AHSS) is commonly used for crash boxes because of predictable plastic collapse; CFRP passenger cells are used in high-end sports cars with different crash strategies (full part replacement).

• Aircraft wings/fuselage: CFRP reduces weight and fuel use despite higher cost — aerospace has strict QA and lifecycle planning to manage composite issues.

FAQs

1. Is carbon fiber stronger than steel?
   — In tensile specific strength and many tensile metrics, yes; but the comparison depends on the grades and whether you mean per-mass (specific strength), per-volume, stiffness, or toughness.

2. Can carbon fiber replace steel in structural parts?
   — Sometimes. It depends on loading, cost targets, manufacturability, and damage tolerance. Hybrid designs (steel + CFRP) are common.

3. Why is carbon fiber used on airplanes if it’s expensive?
   — The large fuel savings from weight reduction and the performance gains often justify the upfront cost in aviation.

4. Is carbon fiber brittle?
   — The fiber and CFRP laminates have low elongation and fail more suddenly than ductile steel — “brittle” compared with steel is a fair description in many contexts.

5. Which is stiffer: steel or carbon fiber?
   — Steel’s Young’s modulus is ~200 GPa. Carbon fibers can have equal or higher modulus depending on grade, but composite laminate stiffness depends on fiber orientation — so stiffness is tunable rather than intrinsic.

6. How does impact resistance compare?
   — Steel typically absorbs impact energy through plastic deformation; CFRP may shatter, delaminate, or lose strength without large visible deformation. For impact-critical parts steel is often preferred.

7. Can you weld carbon fiber?
   — No. CFRP is joined with adhesives, mechanical fasteners, or hybrid inserts; welding is for metals like steel.

8. Is carbon fiber recyclable?
   — Recycling methods exist (pyrolysis, solvolysis, mechanical) but are currently more complex and costly than recycling steel. Lifecycle assessment depends on reuse and end-of-life pathways.

9. Which has better fatigue life?
   — It depends. CFRP often has excellent fatigue performance in properly designed, fiber-aligned load cases, but damage modes like matrix cracking and delamination govern fatigue life and require careful design and inspection regimes.

10. How to test which material to use?
    — Build representative coupons and test per standards (e.g., ASTM D3039 for tensile composites, D695 for compression). Compare specific strength, stiffness, fatigue, and damage tolerance for the intended load spectrum.

Practical design notes (quick tips for engineers)

• Always base design on measured laminate coupon data (ASTM standards) rather than filament datasheets alone.

• For crash or impact-critical applications, include energy-absorbing substructures or hybridize CFRP with metals.

• Use finite element analysis with progressive damage models for CFRP parts (do not rely on isotropic metal models).

• Plan nondestructive inspection (ultrasound, thermography) to detect delamination or inclusions in CFRP.

Closing summary

Carbon fiber is not a simple “drop-in” replacement for steel. It is stronger than steel when you mean strength-to-weight and filament tensile strength, and because engineers can orient fibers it provides designer performance that metals cannot match in some lightweight, high-performance niches. At the same time, steel remains indispensable where toughness, isotropic ductility, cost, simple joining, and recyclability dominate the decision. The right material choice requires matching mechanical needs, geometric constraints, cost targets, manufacturability and lifecycle considerations — and validating designs with ASTM-level testing and qualified suppliers.
